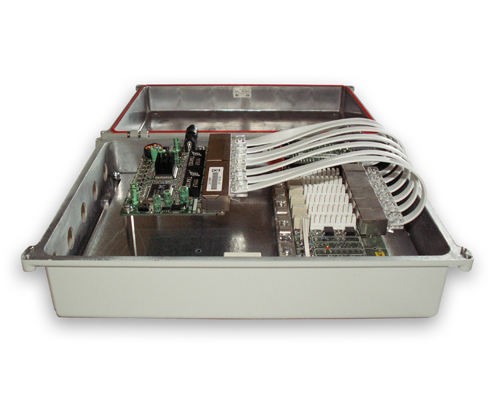

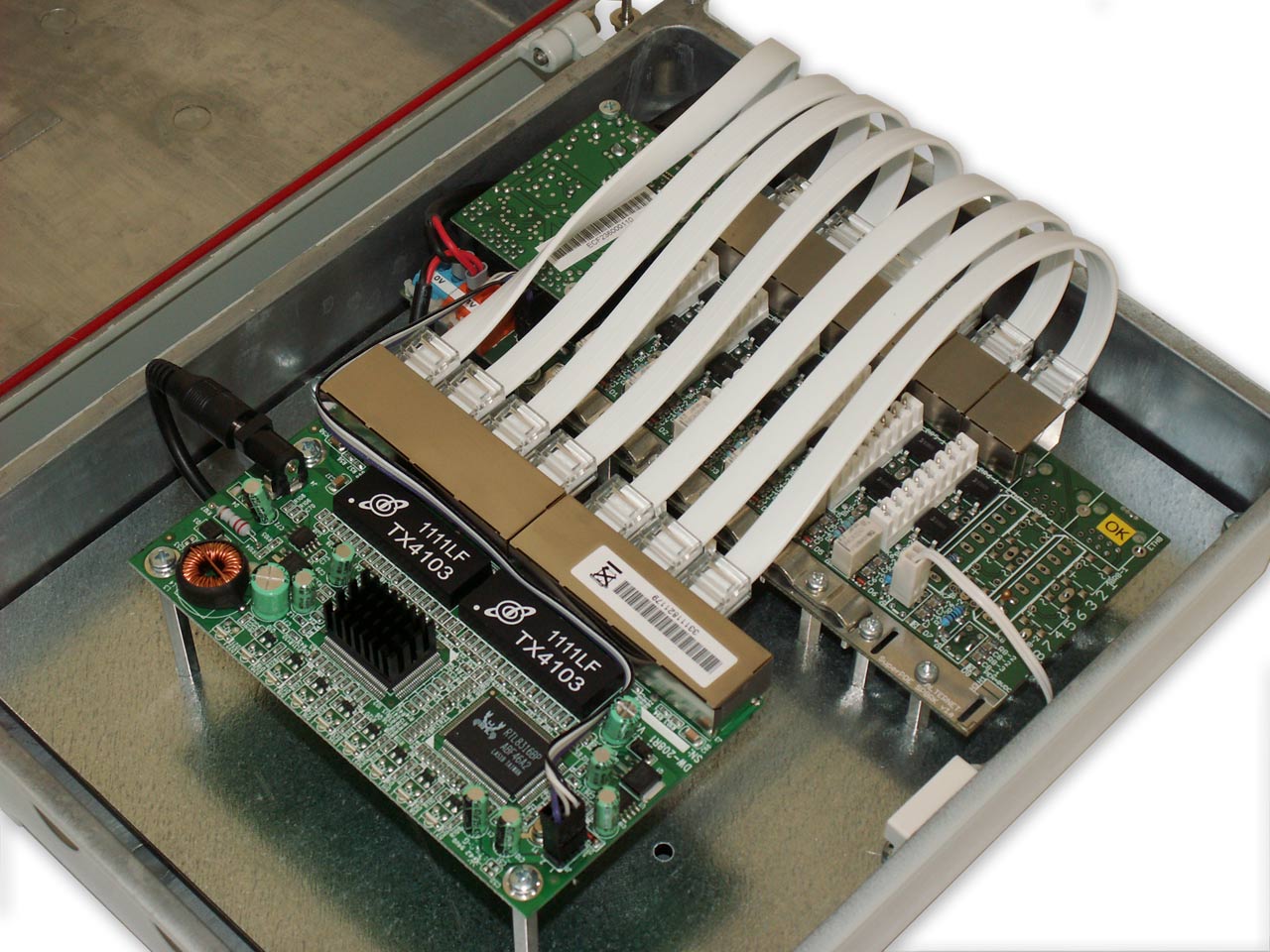

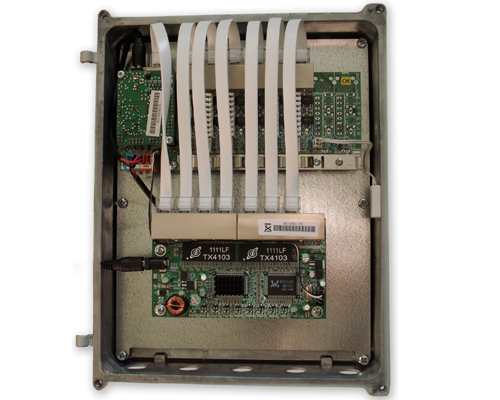

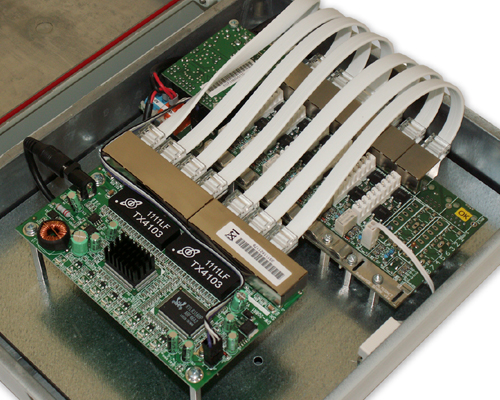

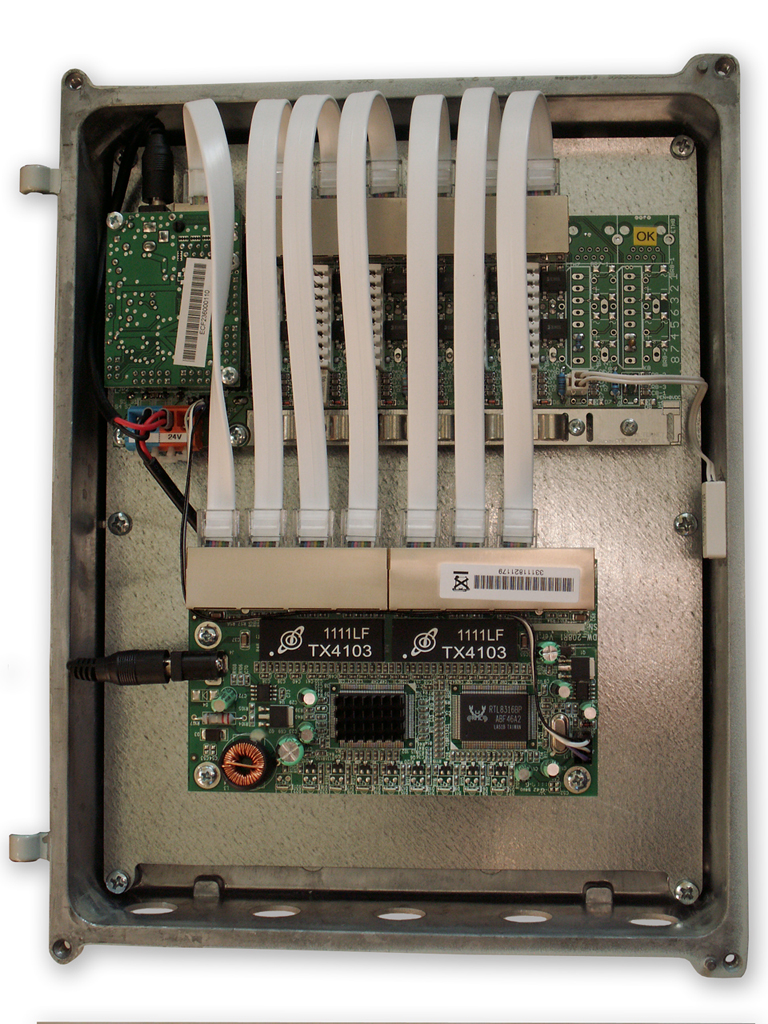

This outdoor version of SuperPoE is intended to be used with your own switch or router (i.e. Mikrotik board). The box comes with a fitted power jack ready to be connected to your switch/router. Pre-drilled mounting holes allow for quick and simple box mounting. Also the outdoor Alubox has a built in magnetic relay contact to detect an intrusion or box opening. The Alubox internal temperature is monitored using a temperature sensor.
- supports DC 12V – 24V range
- reverse polarity protection
- max. 5A current (10A short peaks)
- power filtering at power input
- protection for data & power wires
- remote management and monitoring via web / SNMP
- managed switch included
SuperPOE 6-port boards (standalone or in Alubox cases) includes also:
- temperature sensor to watch case temperature
- connector for magnetic relay contact - for case opening/intrusion detection
- lightning arrester for each of 4 data wires (4x 10kV protection on each ethernet port)
- soft peak protection on each data pair (4 diodes and 1 transil for each data pair)
- designed for proper grounding of shielded cables and connectors (SFTP, STP, FTP) for additional protection
- included protection against short-circuit or high current for each power wire (2 polymeric fuses for each POE port)
- configurable electronic fuse – can disable/enable power on port automatically if DC current is too high/low
SuperPoE 6-port boards (standalone or in Alubox cases) includes also:
- temperature sensor to watch case temperature
- connector for magnetic relay contact - for case opening/intrusion detection
- each POE port can be remotely turned off/on (both + and – power wires are disconnected/reconnected to the device)
- DC current is measured on every POE port and reported to management module
- SNMP trap can be sent when current on POE port is lower/higher than selected range
- ping watchdog for restarting device if IP is not reachable (planned feature, will need software upgrade)
- 10/100Mbit ethernet switch with 8-ports
- 3,25 Gbps max throughput
- additional surge protection included
- jumbo frame support – up to 1552 bytes
- hardware speed limit for every port – 128K, 256K, 1M, 2M, 4M, 8M
- both 802.1q and port-based VLANs supported, max. 32 VLANs (of 4096)
- IGMP snooping supported (v1, v2)
- prioritization support - DiffServ, 802.1p/q, port priority
- full-fuplex flow control with 802.3x pause ability
- port trunking
- port-mirror function
- TX/RX counters for each port
- enabling/disabling each ethernet port
- large MAC address table (max 8192 addresses)
- 802.1d multicast frames can be filtered (STP, pause, LACP)
- network loop detection
- broadcast and multicast flood control
- broadcast-storm filtering
- supports RRCP (Realtek Remote Control Protocol)
