SuperPoE 6 port, Alubox

Zoom

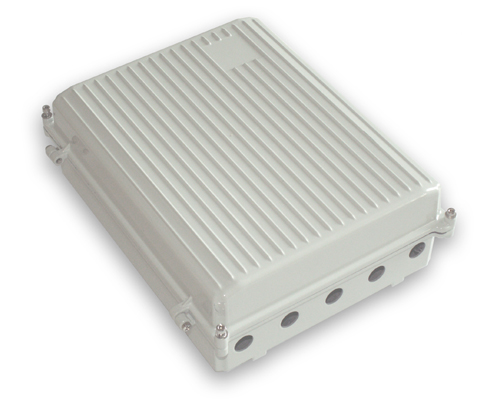

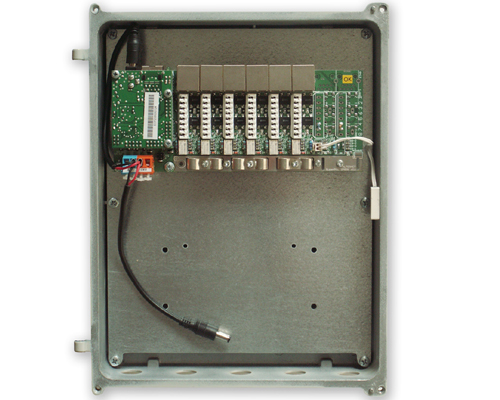

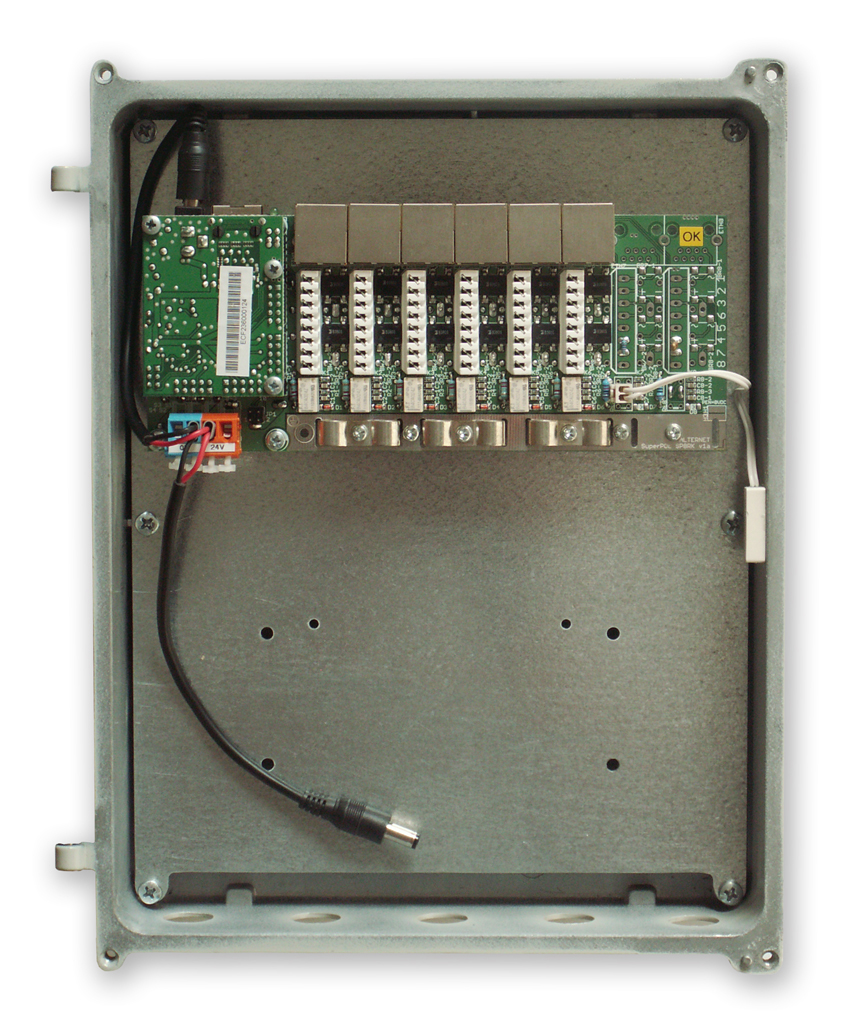

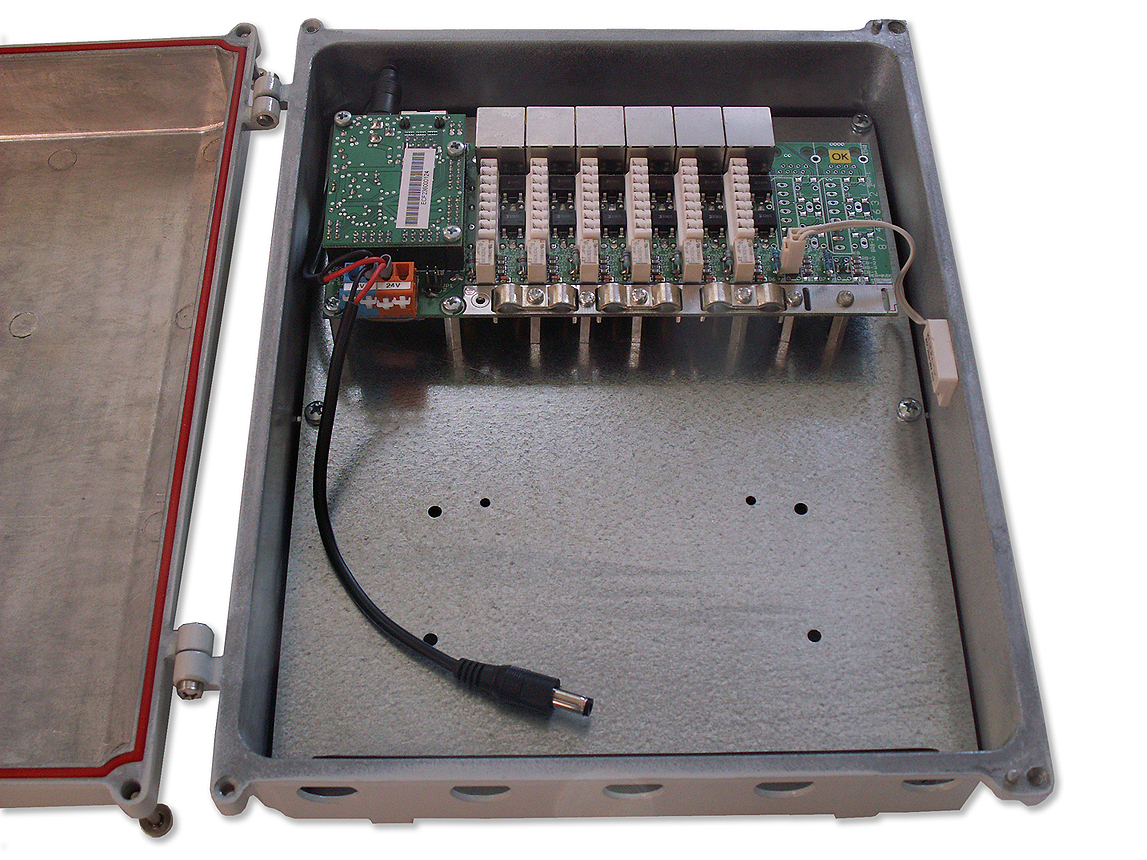

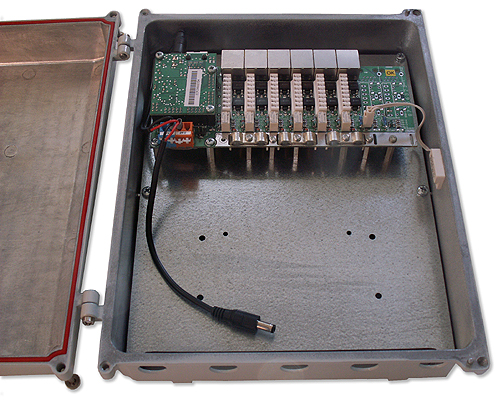

This outdoor version of SuperPOE comprises a managed 8x 100Mbit switch with support for VLAN, IGMP, speed limit, port trunking, packet-storm filtering and other features. Both SuperPoE and switch are managed via same IP and HTTP/SNMP interface. This outdoor SuperPoE is ready-to-work, simply connect PoE cables to reliable KRONE connectors, connect DC power, check connection to ground, and that's it. A magnetic relay contact is built in for intrusion detection and temperature sensor monitors the Alubox internal temperature.

GENERAL

- supports DC 12V – 24V range
- reverse polarity protection
- max. 5A current (10A short peaks)
- power filtering at power input
- protection for data & power wires
- remote management and monitoring via web / SNMP

PROTECTION FOR DATA & POWER WIRES

- lightning arrester for each of 4 data wires (4x 10kV protection on each ethernet port)
- soft peak protection on each data pair (4 diodes and 1 transil for each data pair)
- designed for proper grounding of shielded cables and connectors (SFTP, STP, FTP) for additional protection
- included protection against short-circuit or high current for each power wire (2 polymeric fuses for each POE port)
- configurable electronic fuse – can disable/enable power on port automatically if DC current is too high/low

SuperPOE 6-port boards (standalone or in Alubox cases) includes also:
- temperature sensor to watch case temperature
- connector for magnetic relay contact - for case opening/intrusion detection

MANAGEMENT & MONITORING VIA SNMP / WEB

- each POE port can be remotely turned off/on (both + and – power wires are disconnected/reconnected to the device)
- DC current is measured on every POE port and reported to management module
- SNMP trap can be sent when current on POE port is lower/higher than selected range
- ping watchdog for restarting device if IP is not reachable (planned feature, will need software upgrade)
