SuperPoE 8 port, Rack/KRONE

Zoom

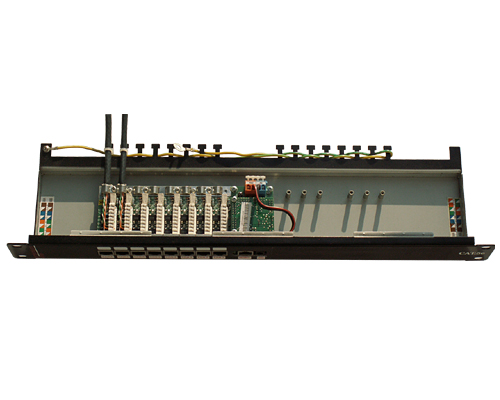

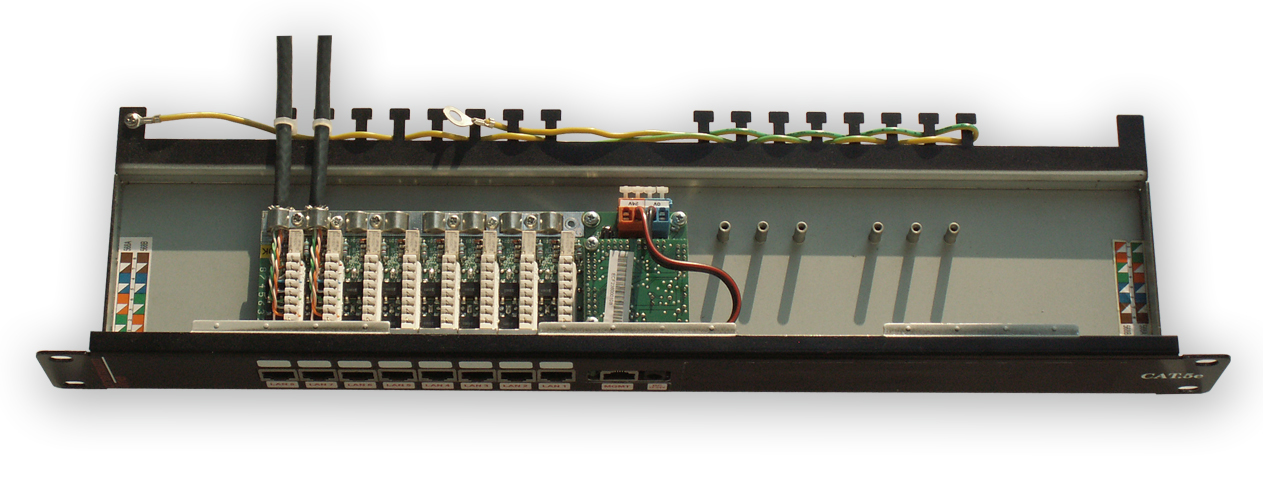

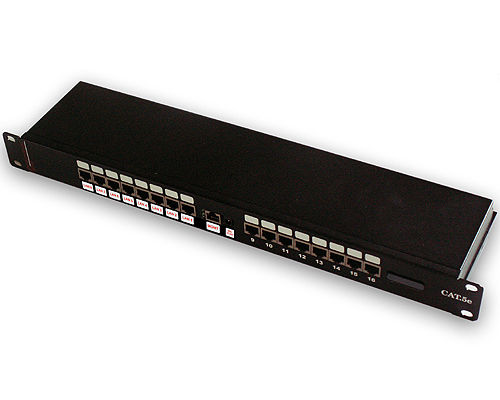

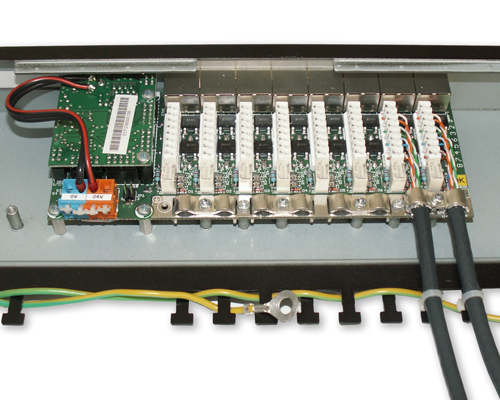

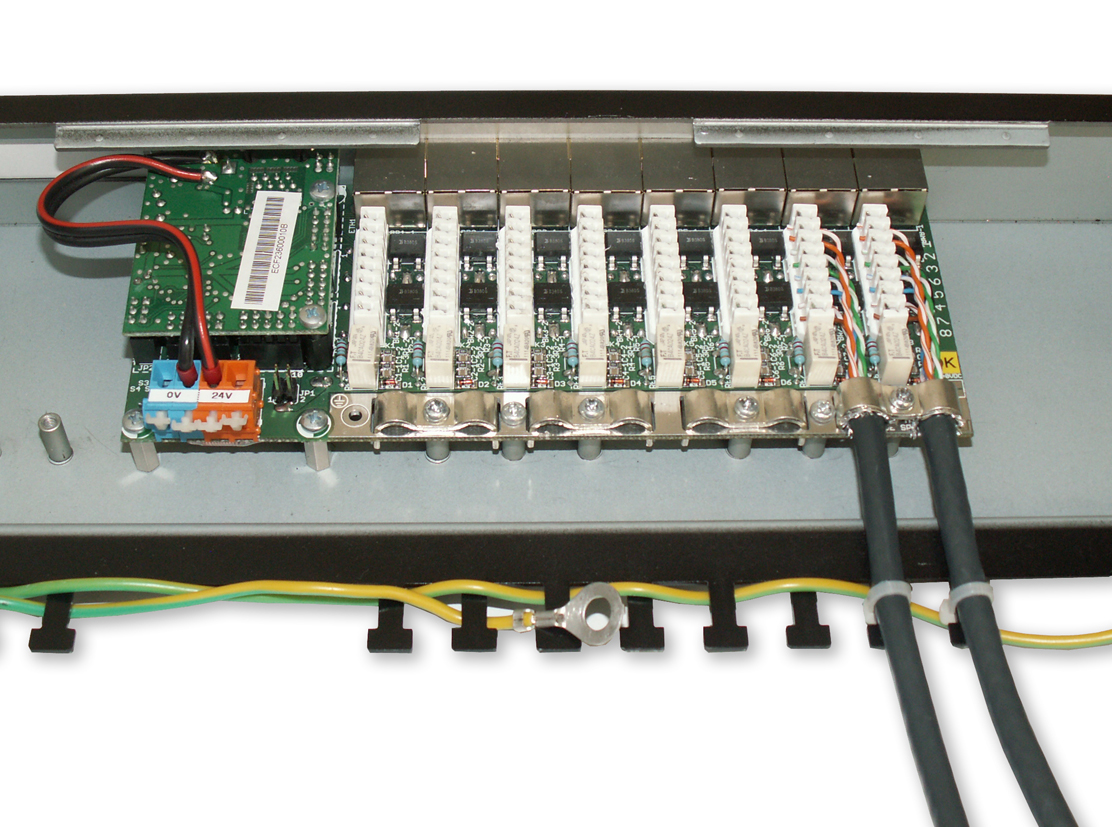

This is a basic indoor version of SuperPoE – fits in standard 19'' rack and occupies only 1U. On the front panel there are 8 LAN (data only) ports, and one LAN port for management, all RJ-45. All these ports will most likely be connected to your 19'' switch. Exit POE cables, leading to the roof or mast, out of the back of SuperPoE and connect to reliable KRONE connectors. Each data port has 3-way surge protection, so your 19'' switch will be well protected, but remember, proper and solid electric connection between SuperPoE case and ground is required. DC power source can be connected directly into SuperPOE using the DC jack on the front panel, or using WAGO connectors inside the case. There is an empty position inside of the case for a second SuperPoE (or plain) board.

GENERAL

- supports DC 12V – 24V range
- reverse polarity protection
- max. 5A current (10A short peaks)
- power filtering at power input
- protection for data & power wires
- remote management and monitoring via web / SNMP

PROTECTION FOR DATA & POWER WIRES

- lightning arrester for each of 4 data wires (4x 10kV protection on each ethernet port)
- soft peak protection on each data pair (4 diodes and 1 transil for each data pair)
- designed for proper grounding of shielded cables and connectors (SFTP, STP, FTP) for additional protection
- included protection against short-circuit or high current for each power wire (2 polymeric fuses for each POE port)
- configurable electronic fuse – can disable/enable power on port automatically if DC current is too high/low

MANAGEMENT & MONITORING VIA SNMP / WEB

- each POE port can be remotely turned off/on (both + and – power wires are disconnected/reconnected to the device)
- DC current is measured on every POE port and reported to management module
- SNMP trap can be sent when current on POE port is lower/higher than selected range
- ping watchdog for restarting device if IP is not reachable (planned feature, will need software upgrade)
