SuperPoE 2x 8 port, Rack/KRONE
Zoom

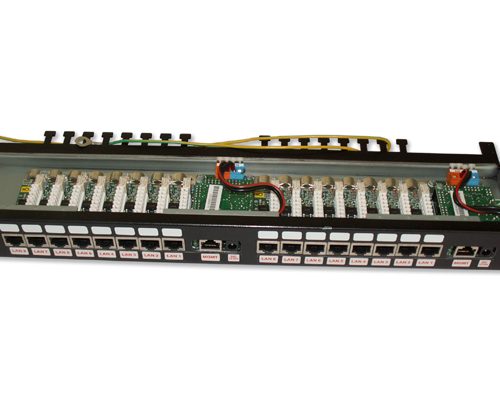

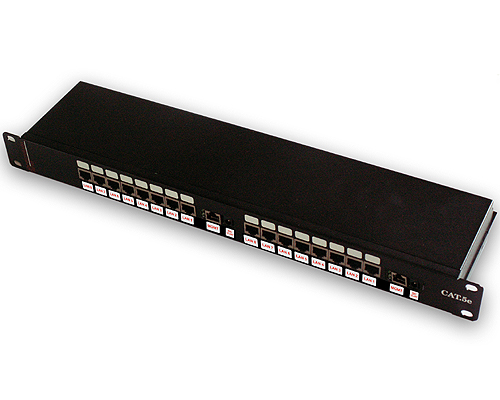

Two SuperPOE boards in one 19" 1U rack case. On the front panel there are 16 LAN (data only) ports, and two LAN ports for management, all RJ-45. Exit POE cables, leading to the roof or mast, out of the back of SuperPoE and connect to reliable KRONE connectors. Each data port has 3-way surge protection (64 lightning arresters inside, 10kV each!!), so your 19" switch will be well protected, but remember, proper and solid electric connection between SuperPoE case and ground is necessary.
DC power source can be connected directly into SuperPoE using the DC jack on the front panel, or using WAGO connectors inside the case. You can use two power sources with same or different voltages (i.e. a 12V power source can be used for 8 ports and a 24V power source for another 8 ports). Alternatively, you can cross-connect two SuperPoE boards inside the rack case, and supply power to two boards from one source. If you have two power sources which can work parallel - then cross-connect two SuperPoE boards inside case, connect both power sources, and you will have redundant power supply for all 16 devices.
GENERAL
- supports DC 12V – 24V range
- reverse polarity protection
- max. 5A current (10A short peaks)
- power filtering at power input
- protection for data & power wires
- remote management and monitoring via web / SNMP
PROTECTION FOR DATA & POWER WIRES
- lightning arrester for each of 4 data wires (4x 10kV protection on each ethernet port)
- soft peak protection on each data pair (4 diodes and 1 transil for each data pair)
- designed for proper grounding of shielded cables and connectors (SFTP, STP, FTP) for additional protection
- included protection against short-circuit or high current for each power wire (2 polymeric fuses for each POE port)
- configurable electronic fuse – can disable/enable power on port automatically if DC current is too high/low
MANAGEMENT & MONITORING VIA SNMP / WEB
- each POE port can be remotely turned off/on (both + and – power wires are disconnected/reconnected to the device)
- DC current is measured on every POE port and reported to management module
- SNMP trap can be sent when current on POE port is lower/higher than selected range
- ping watchdog for restarting device if IP is not reachable (planned feature, will need software upgrade)
