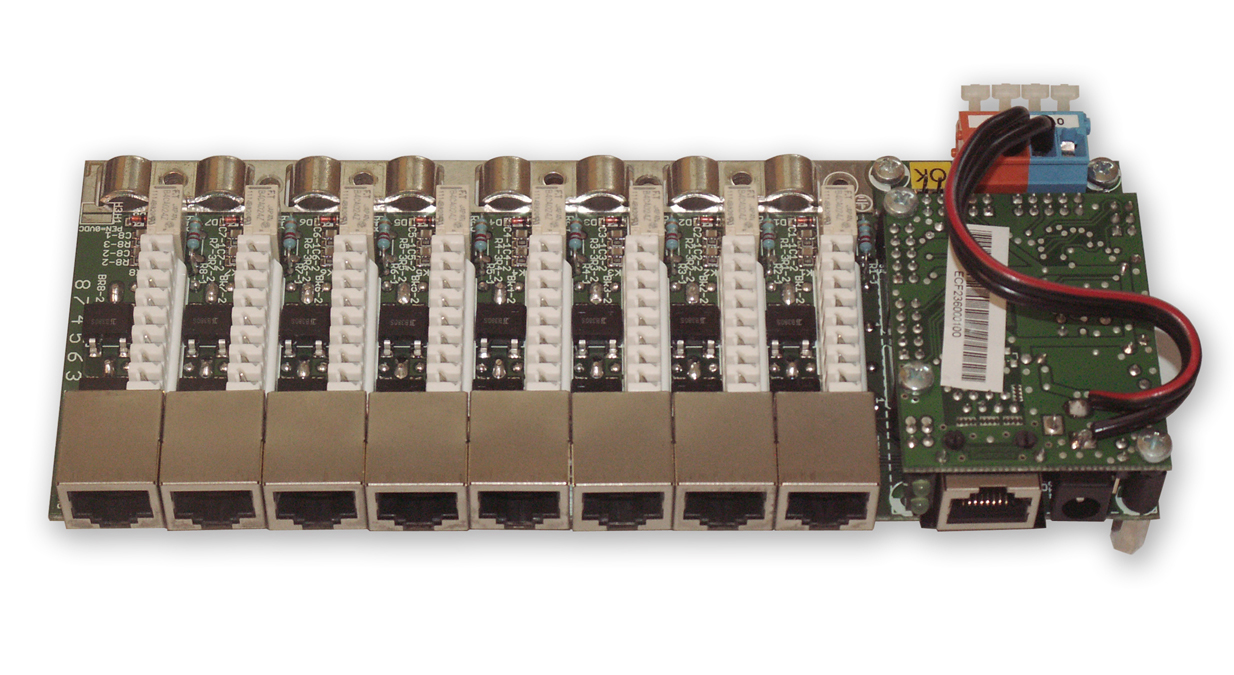

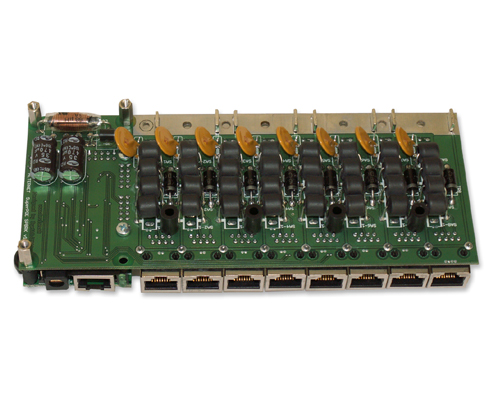

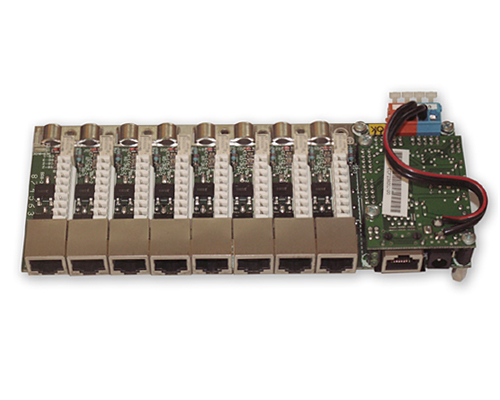

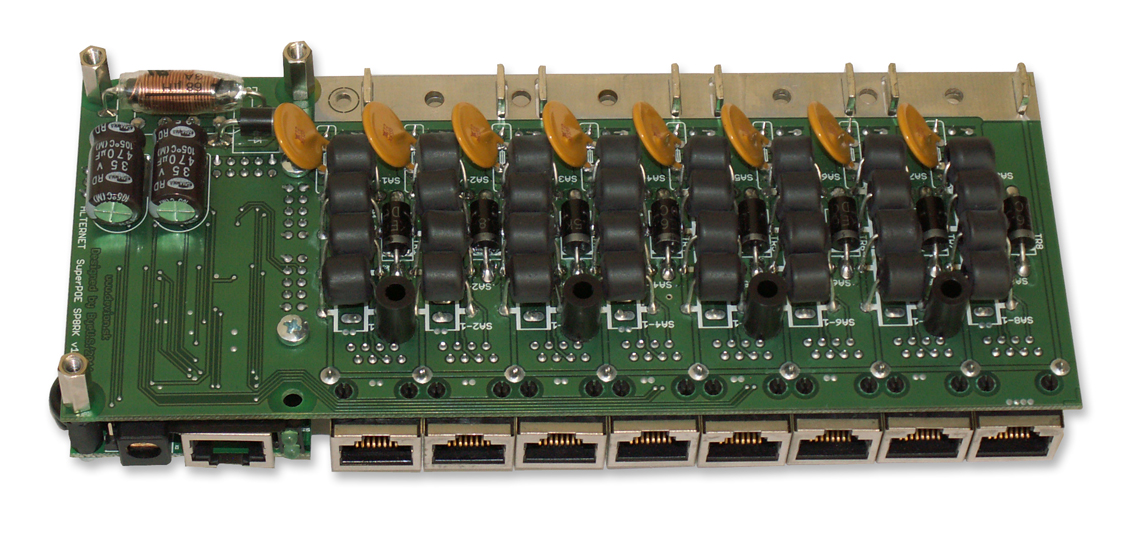

SuperPoE 8 port board - no case included. If you already own SuperPoE 8-port rack case, simply install the board into the case and convert the original case to a case with 16 PoE ports. You can use this board as a replacement for damaged one, or mount the SuperPoE board in your own case.
- supports DC 12V – 24V range
- reverse polarity protection
- max. 5A current (10A short peaks)
- power filtering at power input
- protection for data & power wires
- remote management and monitoring via web / SNMP
- lightning arrester for each of 4 data wires (4x 10kV protection on each ethernet port)
- soft peak protection on each data pair (4 diodes and 1 transil for each data pair)
- designed for proper grounding of shielded cables and connectors (SFTP, STP, FTP) for additional protection
- included protection against short-circuit or high current for each power wire (2 polymeric fuses for each POE port)
- configurable electronic fuse – can disable/enable power on port automatically if DC current is too high/low
- each POE port can be remotely turned off/on (both + and – power wires are disconnected/reconnected to the device)
- DC current is measured on every POE port and reported to management module
- SNMP trap can be sent when current on POE port is lower/higher than selected range
- ping watchdog for restarting device if IP is not reachable (planned feature, will need software upgrade)
