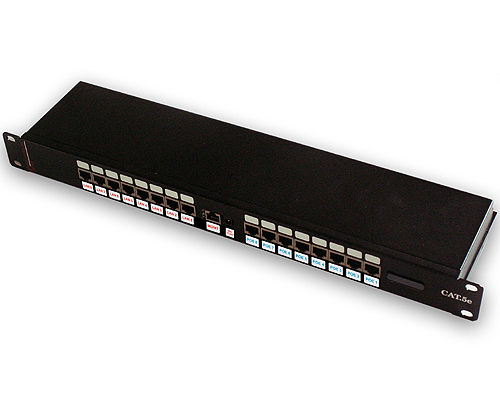

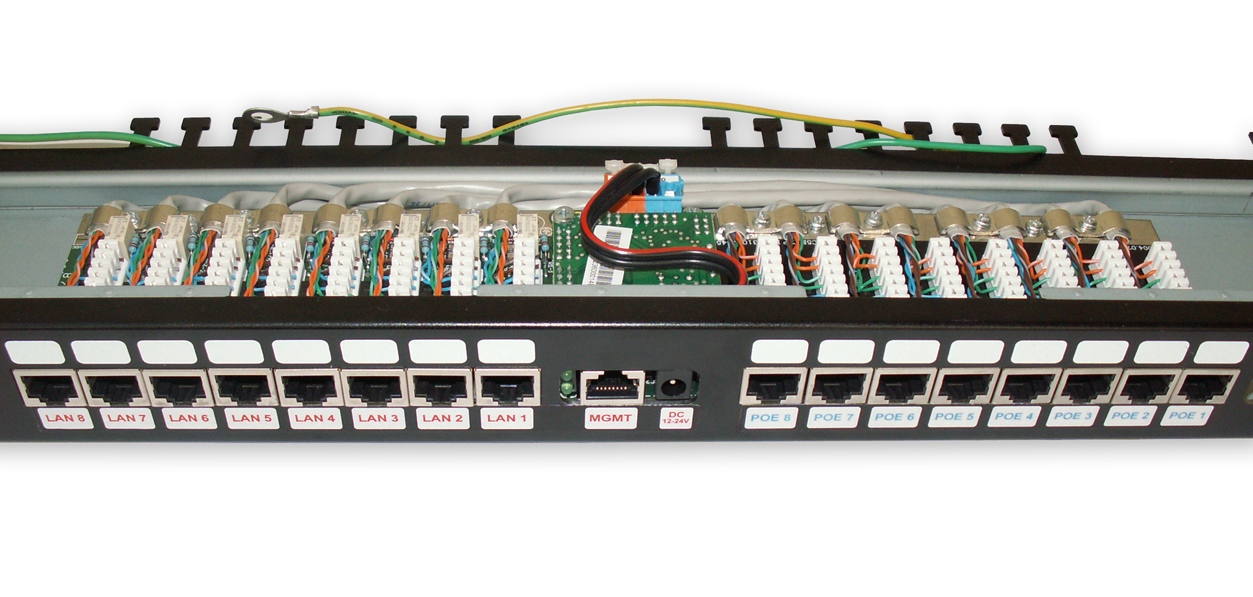

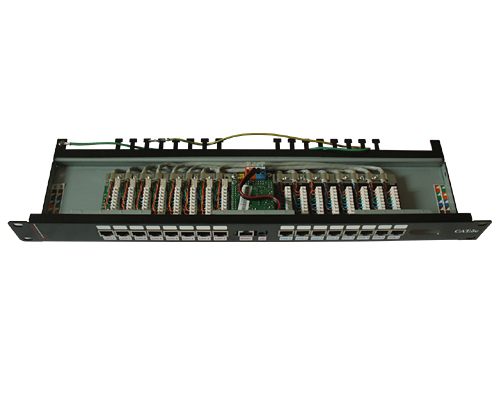

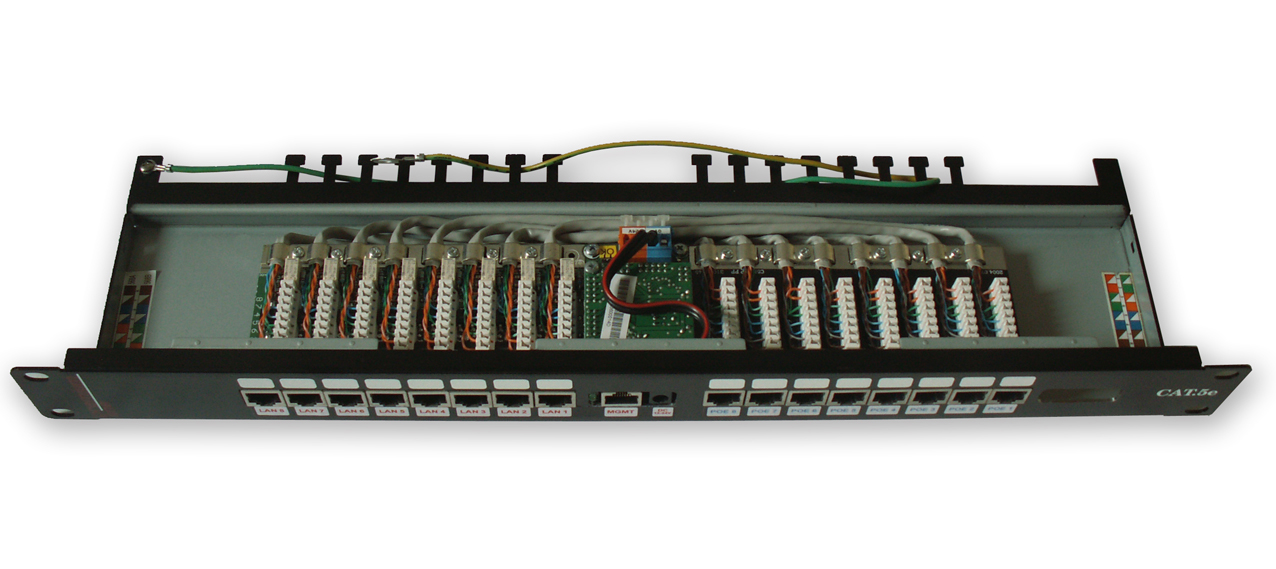

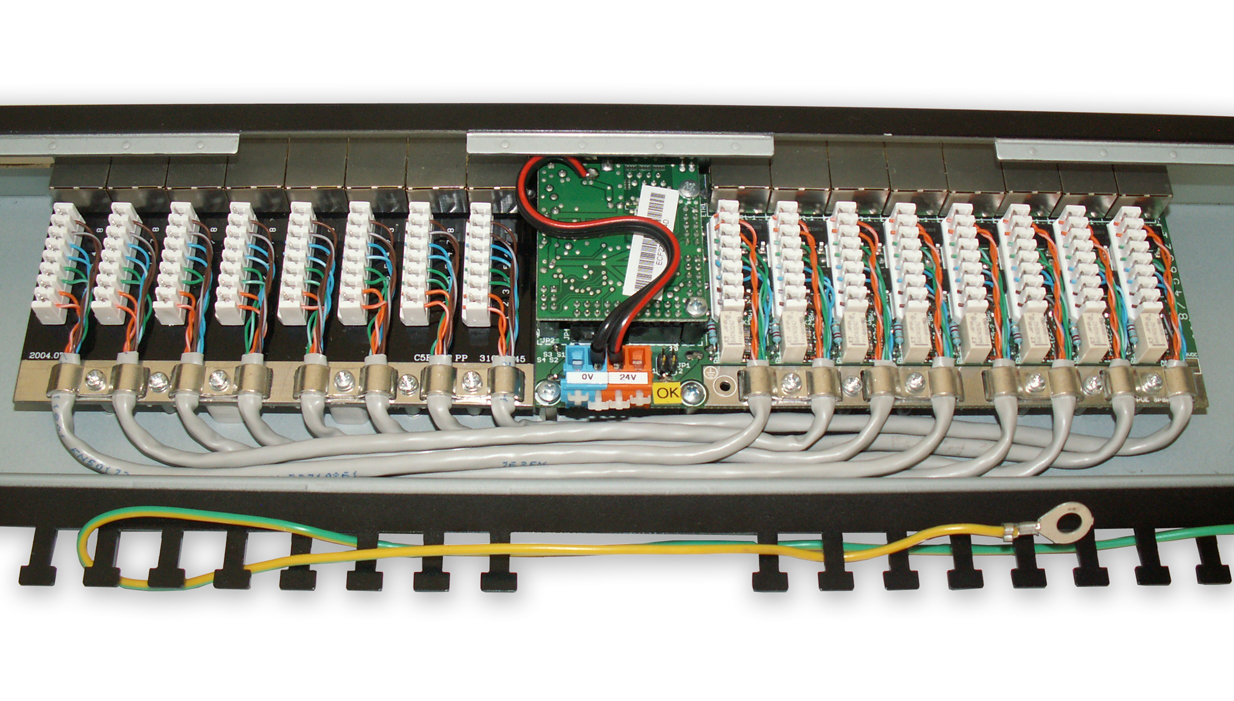

One SuperPoE and one plain board in 19" 1U rack case. Boards are interconnected inside the case. With this version of SuperPoE, you will connect all cables to RJ45 ports – you won't patch any cables to KRONE connectors. This type of connection doesn't offer as reliable connection as KRONE connectors does. RJ45 ports on the left side are DATA only, ports on the right side are DATA+POWER (PoE). Management port and DC power jack are between.
- supports DC 12V – 24V range
- reverse polarity protection
- max. 5A current (10A short peaks)
- power filtering at power input
- protection for data & power wires
- remote management and monitoring via web / SNMP
- lightning arrester for each of 4 data wires (4x 10kV protection on each ethernet port)
- soft peak protection on each data pair (4 diodes and 1 transil for each data pair)
- designed for proper grounding of shielded cables and connectors (SFTP, STP, FTP) for additional protection
- included protection against short-circuit or high current for each power wire (2 polymeric fuses for each POE port)
- configurable electronic fuse – can disable/enable power on port automatically if DC current is too high/low
- each POE port can be remotely turned off/on (both + and – power wires are disconnected/reconnected to the device)
- DC current is measured on every POE port and reported to management module
- SNMP trap can be sent when current on POE port is lower/higher than selected range
- ping watchdog for restarting device if IP is not reachable (planned feature, will need software upgrade)
